Baofeng UV-5R

Açıklama

2016 cell phone two way interphone walkie talkie 20km,Wireless  Intercom Digital Two Way Radio





Handheld radio
Walkie & talkie
Dual band walkie talkie
Ham two way radio
UV-5R
UV-5RA / B / C /D / E
Cheap two way radio
Cheap dual band walkie talkie
Ham radio
Amateur Radio
Interphone
Walkie talkie
Walkie-talkie
Walky talky
2 way radio
Two way radio
CE,ROHS approval Radio
FCC approval Walkie talkie
Two way transceiver
Two way interphone

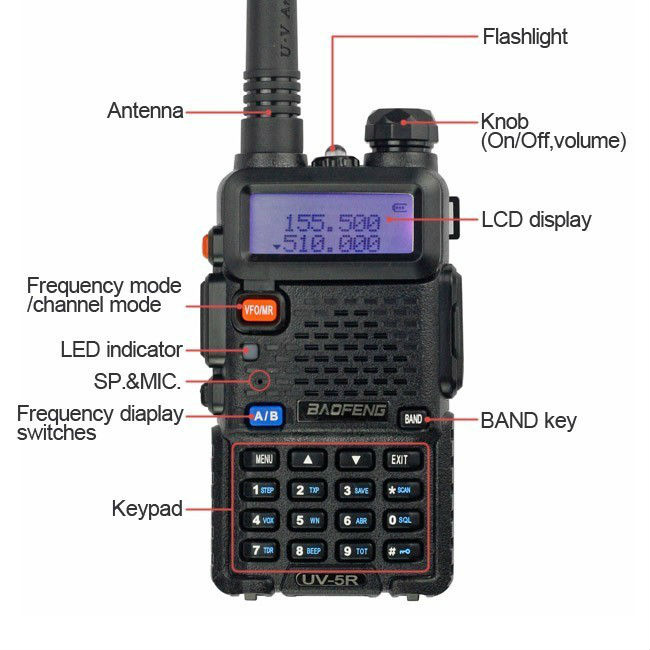

MAIN FUNCTIONS:

-Dual band,dual display                                          -Shortcut menu opration mode

-Emergency Alarm                                                   -VOF & Memory channels scan

-Time-Out Timer(TOT)                                             -Low Battery Alert

-Battery Save Function                                           -Large LCD Display

-LED Flashlight                                                        -Busy channel lock-out(BCLO)

-Channel Monitor                                                    -High/Low TX power selectable

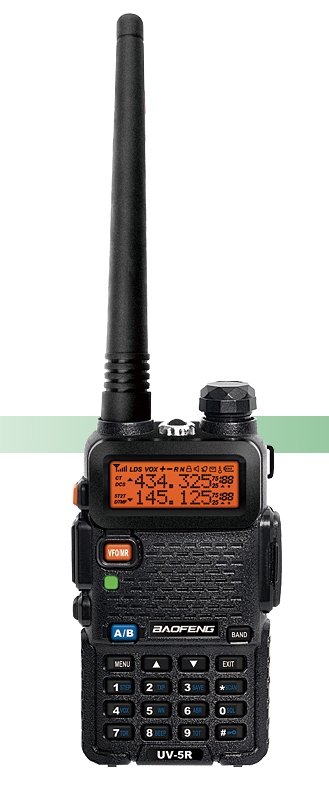

5W Baofeng UV-5R Two Way Radio VHF UHF Dual Band Professional FM Transceiver

General
Frequency Range 65MHz-108MHz(Only commercial FM radio reception)
VHF:136MHz-174MHz(Rx/Tx)
UHF:400MHz-520MHz(Rx/Tx)
Memory Channel Up to 128 Channels
Frequency Step 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz
Operated Voltage DC 7.4V
Battery capacity 1800MAh Li-ion
Duty cycle 03/03/54min.(Rx/Tx/Standby)
Frequency Stability ±2.5ppm
Operated Temperature -20°C to +60°C
Antenna Impedance 50Ω
Dimensions (L×W×H) 55×32×108mm (not including antenna)
Weight 110g (not including battery & antenna)
Consumption in standby ≤75mA
Communication Range about 5-8km
Receiver Wide band Narrow band
Sensitivity (12dB SINAD) ≤0.20 uV ≤0.20 uV
Intermodulation ≥60dB ≥60dB
Adjacent channel selectivity ≥65dB ≥60dB
Maximum deviation ≤±5kHz ≤±2.5kHz
Audio Power Output 1W 1W
Transmitter Wide band Narrow band
RF Power Output 5W
Type of modulation FM
Maximum deviation ≤±5KHz ≤±2.5KHz
Emission class 16kΦF3E 11kΦF3E
Spurious Emission <-60dB <-60dB

5W Baofeng UV-5R Two Way Radio VHF UHF Dual Band Professional FM Transceiver

Packing Items: 1 X Tansceiver Unit

                              1 X Bettery Pack

                              1 X Antenna

                              1 X Adapter

                              1X Belt Clip

                              1X Handstrap

                              1X Earpiece

                              1X User’s Manual

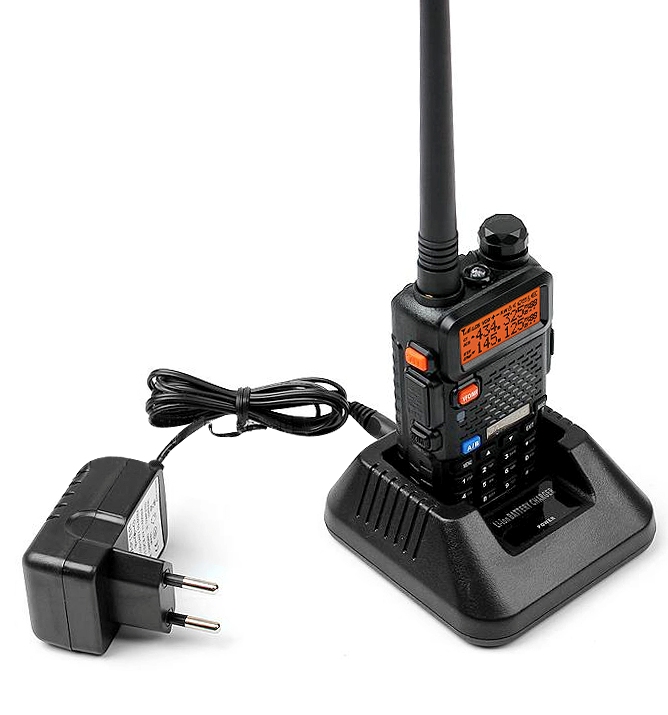

                              1X Drop-in Charging Tray
